Prodotti NOAA GOES-18 ABI Level 2 full-disk a 2 km

Codice GribStream: goes18abi

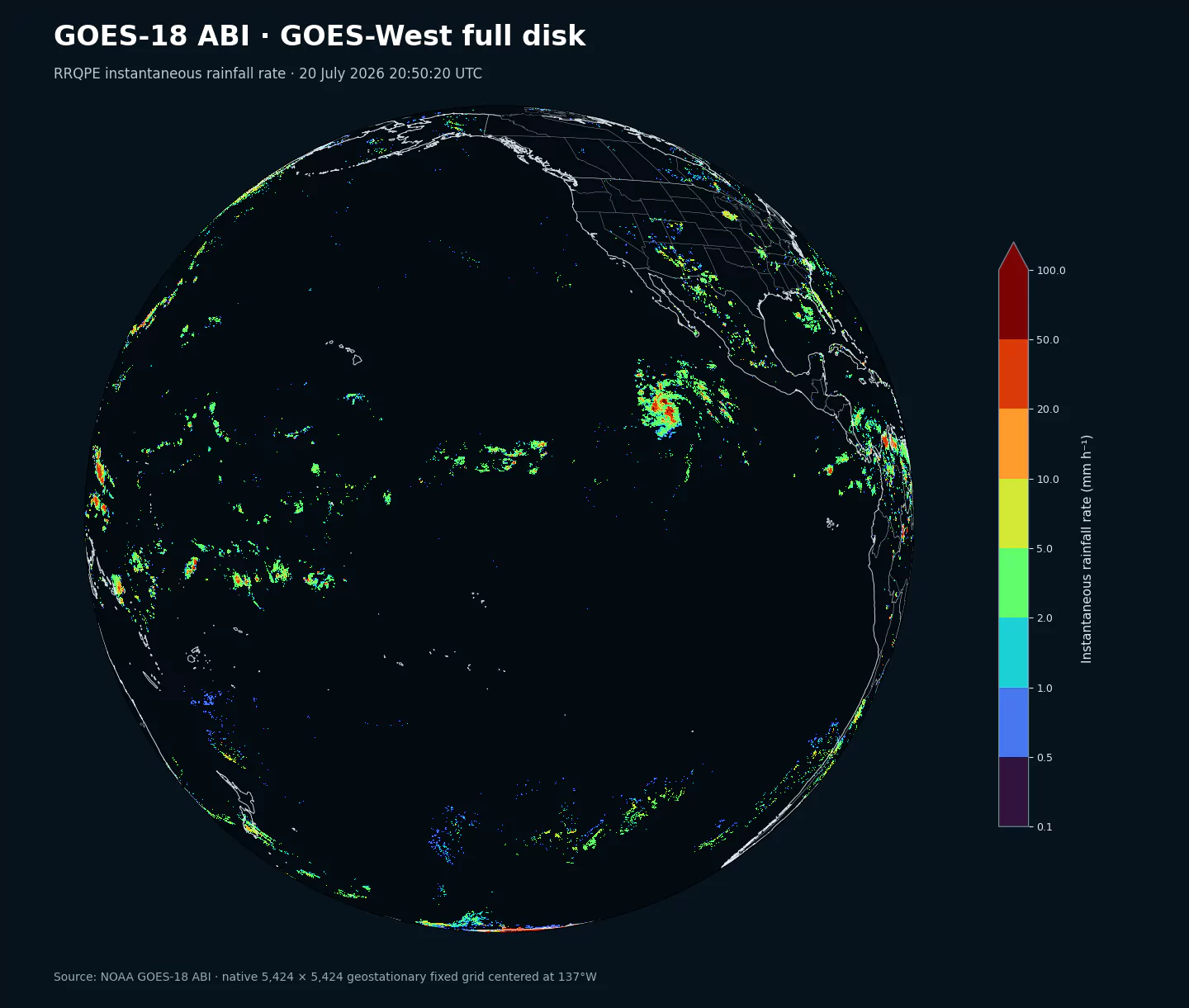

Tasso di pioggia istantaneo full-disk NOAA GOES-18 ABI sulla griglia fissa nativa GOES-West
NOAA GOES-18 ABI RRQPE del 20 luglio 2026 alle 20:50:20 UTC, rappresentato dalla griglia fissa nativa GOES-West di 5.424 per 5.424; i colori mostrano il tasso istantaneo in mm h-1.

Copertura dell'archivio: 46 campi nativi di 19 famiglie ABI Level 2 sono disponibili da 2023-01-04 a oggi. Ogni famiglia inizia quando NOAA ha pubblicato una versione operativa compatibile. Sono osservazioni, non previsioni; horizon è 0.

Serie operativa: la raccolta segue GOES-18 durante il servizio nella posizione GOES-West sulla griglia nominale centrata vicino a 137W. È il satellite attualmente operativo in questa posizione.

Una griglia fissa: include solo le famiglie da circa 2 km sulla griglia NOAA da 5.424 per 5.424. goes18abi10km contiene l'altra risoluzione.

Disponibilità e dati aperti: manovre, calibrazione, interruzioni, limiti stagionali e transizioni possono creare lacune. I dati NOAA nel programma Open Data sono pubblici; è richiesta l'attribuzione senza implicare approvazione NOAA.

Disponibilità dell'archivio: le osservazioni recenti sono disponibili per prime, mentre le date precedenti fino all'inizio della serie operativa vengono aggiunte progressivamente.

Descrizione

ABI, lo strumento di imaging multispettrale avanzato, osserva il disco geostazionario in 16 bande visibili e infrarosse.

I prodotti Level 2 convertono le radianze in osservazioni di nubi, aerosol, incendi, precipitazioni, neve, radiazione e superfici. Non ogni stima è valida per ogni pixel o momento.

Luce diurna, cielo sereno, filtro delle nubi, ipotesi atmosferiche e geometria di vista influenzano i campi; l'impronta cresce verso il lembo.

L'inventario elenca i 46 selettori sorgente esatti e i relativi periodi di disponibilità.

Dettagli

Dataset correlati

Parametri

Cerca parametri
0 parametri

Fai clic su un parametro per vedere le varianti in una tabella compatta con selettori JSON pronti da copiare. Codici, livelli e valori dei selettori restano esattamente come li espone l'API.

ACM –ABI four-level cloud mask category
1 variant

ABI four-level cloud mask category

Level Info Horizon Introduced Selector
entire atmosphere 0h 2023-01-04
{"name":"ACM","level":"entire atmosphere","info":""}
AOD –ABI aerosol optical depth (1)
1 variant

ABI aerosol optical depth (1).

Level Info Horizon Introduced Selector
entire atmosphere 0h 2023-01-04
{"name":"AOD","level":"entire atmosphere","info":""}
Area –ABI fire area (m2)
1 variant

ABI fire area (m2).

Level Info Horizon Introduced Selector
surface 0h 2026-07-10
{"name":"Area","level":"surface","info":""}
BCM –ABI binary clear-sky mask (1)
1 variant

ABI binary clear-sky mask (1).

Level Info Horizon Introduced Selector
entire atmosphere 0h 2023-01-04
{"name":"BCM","level":"entire atmosphere","info":""}
BRF1 –ABI Band 1 land surface bidirectional reflectance factor (1)
1 variant

ABI Band 1 land surface bidirectional reflectance factor (1).

Level Info Horizon Introduced Selector
surface 0h 2023-01-04
{"name":"BRF1","level":"surface","info":""}
BRF2 –ABI Band 2 land surface bidirectional reflectance factor (1)
1 variant

ABI Band 2 land surface bidirectional reflectance factor (1).

Level Info Horizon Introduced Selector
surface 0h 2023-01-04
{"name":"BRF2","level":"surface","info":""}
BRF3 –ABI Band 3 land surface bidirectional reflectance factor (1)
1 variant

ABI Band 3 land surface bidirectional reflectance factor (1).

Level Info Horizon Introduced Selector
surface 0h 2023-01-04
{"name":"BRF3","level":"surface","info":""}
BRF5 –ABI Band 5 land surface bidirectional reflectance factor (1)
1 variant

ABI Band 5 land surface bidirectional reflectance factor (1).

Level Info Horizon Introduced Selector
surface 0h 2023-01-04
{"name":"BRF5","level":"surface","info":""}
BRF6 –ABI Band 6 land surface bidirectional reflectance factor (1)
1 variant

ABI Band 6 land surface bidirectional reflectance factor (1).

Level Info Horizon Introduced Selector
surface 0h 2023-01-04
{"name":"BRF6","level":"surface","info":""}
CMI_C01 –ABI Band 1 blue visible reflectance (0.47 um) (1)
1 variant

ABI Band 1 blue visible reflectance (0.47 um) (1).

Level Info Horizon Introduced Selector
top of atmosphere 0h 2023-01-04
{"name":"CMI_C01","level":"top of atmosphere","info":""}
CMI_C02 –ABI Band 2 red visible reflectance (0.64 um) (1)
1 variant

ABI Band 2 red visible reflectance (0.64 um) (1).

Level Info Horizon Introduced Selector
top of atmosphere 0h 2023-01-04
{"name":"CMI_C02","level":"top of atmosphere","info":""}
CMI_C03 –ABI Band 3 near-infrared vegetation reflectance (0.86 um) (1)
1 variant

ABI Band 3 near-infrared vegetation reflectance (0.86 um) (1).

Level Info Horizon Introduced Selector
top of atmosphere 0h 2023-01-04
{"name":"CMI_C03","level":"top of atmosphere","info":""}
CMI_C04 –ABI Band 4 near-infrared cirrus reflectance (1.37 um) (1)
1 variant

ABI Band 4 near-infrared cirrus reflectance (1.37 um) (1).

Level Info Horizon Introduced Selector
top of atmosphere 0h 2023-01-04
{"name":"CMI_C04","level":"top of atmosphere","info":""}
CMI_C05 –ABI Band 5 near-infrared snow and ice reflectance (1.61 um) (1)
1 variant

ABI Band 5 near-infrared snow and ice reflectance (1.61 um) (1).

Level Info Horizon Introduced Selector
top of atmosphere 0h 2023-01-04
{"name":"CMI_C05","level":"top of atmosphere","info":""}
CMI_C06 –ABI Band 6 near-infrared cloud-particle reflectance (2.24 um) (1)
1 variant

ABI Band 6 near-infrared cloud-particle reflectance (2.24 um) (1).

Level Info Horizon Introduced Selector
top of atmosphere 0h 2023-01-04
{"name":"CMI_C06","level":"top of atmosphere","info":""}
CMI_C07 –ABI Band 7 shortwave infrared brightness temperature (3.90 um) (K)
1 variant

ABI Band 7 shortwave infrared brightness temperature (3.90 um) (K).

Level Info Horizon Introduced Selector
top of atmosphere 0h 2023-01-04
{"name":"CMI_C07","level":"top of atmosphere","info":""}
CMI_C08 –ABI Band 8 upper-level water-vapor brightness temperature (6.19 um) (K)
1 variant

ABI Band 8 upper-level water-vapor brightness temperature (6.19 um) (K).

Level Info Horizon Introduced Selector
top of atmosphere 0h 2023-01-04
{"name":"CMI_C08","level":"top of atmosphere","info":""}
CMI_C09 –ABI Band 9 mid-level water-vapor brightness temperature (6.95 um) (K)
1 variant

ABI Band 9 mid-level water-vapor brightness temperature (6.95 um) (K).

Level Info Horizon Introduced Selector
top of atmosphere 0h 2023-01-04
{"name":"CMI_C09","level":"top of atmosphere","info":""}
CMI_C10 –ABI Band 10 lower-level water-vapor brightness temperature (7.34 um) (K)
1 variant

ABI Band 10 lower-level water-vapor brightness temperature (7.34 um) (K).

Level Info Horizon Introduced Selector
top of atmosphere 0h 2023-01-04
{"name":"CMI_C10","level":"top of atmosphere","info":""}
CMI_C11 –ABI Band 11 cloud-top-phase brightness temperature (8.50 um) (K)
1 variant

ABI Band 11 cloud-top-phase brightness temperature (8.50 um) (K).

Level Info Horizon Introduced Selector
top of atmosphere 0h 2023-01-04
{"name":"CMI_C11","level":"top of atmosphere","info":""}
CMI_C12 –ABI Band 12 ozone brightness temperature (9.61 um) (K)
1 variant

ABI Band 12 ozone brightness temperature (9.61 um) (K).

Level Info Horizon Introduced Selector
top of atmosphere 0h 2023-01-04
{"name":"CMI_C12","level":"top of atmosphere","info":""}
CMI_C13 –ABI Band 13 clean longwave-window brightness temperature (10.35 um) (K)
1 variant

ABI Band 13 clean longwave-window brightness temperature (10.35 um) (K).

Level Info Horizon Introduced Selector
top of atmosphere 0h 2023-01-04
{"name":"CMI_C13","level":"top of atmosphere","info":""}
CMI_C14 –ABI Band 14 longwave-window brightness temperature (11.20 um) (K)
1 variant

ABI Band 14 longwave-window brightness temperature (11.20 um) (K).

Level Info Horizon Introduced Selector
top of atmosphere 0h 2023-01-04
{"name":"CMI_C14","level":"top of atmosphere","info":""}
CMI_C15 –ABI Band 15 dirty longwave-window brightness temperature (12.30 um) (K)
1 variant

ABI Band 15 dirty longwave-window brightness temperature (12.30 um) (K).

Level Info Horizon Introduced Selector
top of atmosphere 0h 2023-01-04
{"name":"CMI_C15","level":"top of atmosphere","info":""}
CMI_C16 –ABI Band 16 carbon-dioxide brightness temperature (13.30 um) (K)
1 variant

ABI Band 16 carbon-dioxide brightness temperature (13.30 um) (K).

Level Info Horizon Introduced Selector
top of atmosphere 0h 2023-01-04
{"name":"CMI_C16","level":"top of atmosphere","info":""}
COD –ABI cloud optical depth at 640 nm (1)
1 variant

ABI cloud optical depth at 640 nm (1).

Level Info Horizon Introduced Selector
entire atmosphere 0h 2023-03-27
{"name":"COD","level":"entire atmosphere","info":""}
CPS –ABI effective cloud particle radius (um)
1 variant

ABI effective cloud particle radius (um).

Level Info Horizon Introduced Selector
cloud top 0h 2023-12-04
{"name":"CPS","level":"cloud top","info":""}
Cloud –ABI aerosol-product cloud detection flag (1)
1 variant

ABI aerosol-product cloud detection flag (1).

Level Info Horizon Introduced Selector
entire atmosphere 0h 2024-04-17
{"name":"Cloud","level":"entire atmosphere","info":""}
Cloud_Probabilities –ABI cloud probability
1 variant

ABI cloud probability

Level Info Horizon Introduced Selector
entire atmosphere 0h 2023-01-04
{"name":"Cloud_Probabilities","level":"entire atmosphere","info":""}
DSR –ABI downward shortwave radiation at the surface (W m-2)
1 variant

ABI downward shortwave radiation at the surface (W m-2).

Level Info Horizon Introduced Selector
surface 0h 2025-01-01
{"name":"DSR","level":"surface","info":""}
Dust –ABI dust detection flag (1)
1 variant

ABI dust detection flag (1).

Level Info Horizon Introduced Selector
entire atmosphere 0h 2023-01-04
{"name":"Dust","level":"entire atmosphere","info":""}
FSC –ABI fractional snow cover (percent)
1 variant

ABI fractional snow cover (percent).

Level Info Horizon Introduced Selector
surface 0h 2023-01-04
{"name":"FSC","level":"surface","info":""}
HT –ABI cloud top height (m)
1 variant

ABI cloud top height (m).

Level Info Horizon Introduced Selector
cloud top 0h 2023-03-27
{"name":"HT","level":"cloud top","info":""}
LSA –ABI land surface shortwave broadband albedo (1)
1 variant

ABI land surface shortwave broadband albedo (1).

Level Info Horizon Introduced Selector
surface 0h 2023-01-04
{"name":"LSA","level":"surface","info":""}
LST –ABI land surface skin temperature (K)
1 variant

ABI land surface skin temperature (K).

Level Info Horizon Introduced Selector
surface 0h 2023-01-04
{"name":"LST","level":"surface","info":""}
Mask –ABI fire detection and characterization category mask (1)
1 variant

ABI fire detection and characterization category mask (1).

Level Info Horizon Introduced Selector
surface 0h 2026-07-10
{"name":"Mask","level":"surface","info":""}
PRES –Pressure (Pa)
1 variant
NOAA GRIB2 Table 4.2-0-3

Pressure is the atmospheric pressure at the specified level. It is a fundamental mass-field variable for dynamics and thermodynamics.

  • Units: Pa.
Level Info Horizon Introduced Selector
cloud top 0h 2023-03-27
{"name":"PRES","level":"cloud top","info":""}
PSD –ABI cloud particle size distribution (um)
1 variant

ABI cloud particle size distribution (um).

Level Info Horizon Introduced Selector
cloud top 0h 2023-01-04
{"name":"PSD","level":"cloud top","info":""}
Phase –ABI cloud top phase category (1)
1 variant

ABI cloud top phase category (1).

Level Info Horizon Introduced Selector
cloud top 0h 2023-01-04
{"name":"Phase","level":"cloud top","info":""}
Power –ABI fire radiative power (MW)
1 variant

ABI fire radiative power (MW).

Level Info Horizon Introduced Selector
surface 0h 2026-07-10
{"name":"Power","level":"surface","info":""}
RRQPE –ABI quantitative precipitation estimate rainfall rate (mm h-1)
1 variant

ABI quantitative precipitation estimate rainfall rate (mm h-1).

Level Info Horizon Introduced Selector
surface 0h 2023-01-04
{"name":"RRQPE","level":"surface","info":""}
RSR –ABI reflected shortwave radiation at the top of the atmosphere (W m-2)
1 variant

ABI reflected shortwave radiation at the top of the atmosphere (W m-2).

Level Info Horizon Introduced Selector
top of atmosphere 0h 2025-01-01
{"name":"RSR","level":"top of atmosphere","info":""}
SST –ABI sea surface skin temperature (K)
1 variant

ABI sea surface skin temperature (K).

Level Info Horizon Introduced Selector
surface 0h 2023-01-04
{"name":"SST","level":"surface","info":""}
Smoke –ABI smoke detection flag (1)
1 variant

ABI smoke detection flag (1).

Level Info Horizon Introduced Selector
entire atmosphere 0h 2023-01-04
{"name":"Smoke","level":"entire atmosphere","info":""}
SnowIce –ABI snow and ice detection flag (1)
1 variant

ABI snow and ice detection flag (1).

Level Info Horizon Introduced Selector
surface 0h 2024-04-17
{"name":"SnowIce","level":"surface","info":""}
TEMP –ABI cloud top temperature (K)
1 variant

ABI cloud top temperature (K).

Level Info Horizon Introduced Selector
cloud top 0h 2023-01-04
{"name":"TEMP","level":"cloud top","info":""}
Temp –ABI fire temperature (K)
1 variant

ABI fire temperature (K).

Level Info Horizon Introduced Selector
surface 0h 2026-07-10
{"name":"Temp","level":"surface","info":""}

Nessun parametro corrisponde alla ricerca.
