Climate Forecast System (CFS Ocean)

GribStream Code: cfsocnf

Description

The Climate Forecast System (CFS), developed by NOAA’s National Centers for Environmental Prediction (NCEP), is a state-of-the-art global weather and climate model designed for medium- to long-range forecasting—spanning from days up to several seasons. CFS integrates atmospheric, oceanic, land surface, and sea ice components into a fully coupled modeling framework, delivering highly detailed and reliable forecasts for climate trends, seasonal outlooks, and extended-range weather events. By assimilating real-time observations from satellites, ocean buoys, and weather stations worldwide, CFS ensures its predictions reflect the current state of the Earth system, making it an essential tool for researchers, meteorologists, and organizations that rely on accurate climate guidance.

CFS Ocean output provides detailed forecasts of oceanic variables, including sea surface temperature, subsurface temperature profiles, ocean currents, and sea ice extent. This data is vital for monitoring ocean-atmosphere interactions, predicting El Niño and La Niña events, supporting fisheries management, and improving seasonal climate outlooks. By modeling ocean dynamics alongside atmospheric processes, the CFS delivers a comprehensive picture of the Earth’s climate system.

Detail

Archive begins: 2018-10-31
Product page: https://cfs.ncep.noaa.gov/cfsv2/docs.html
Key Features:

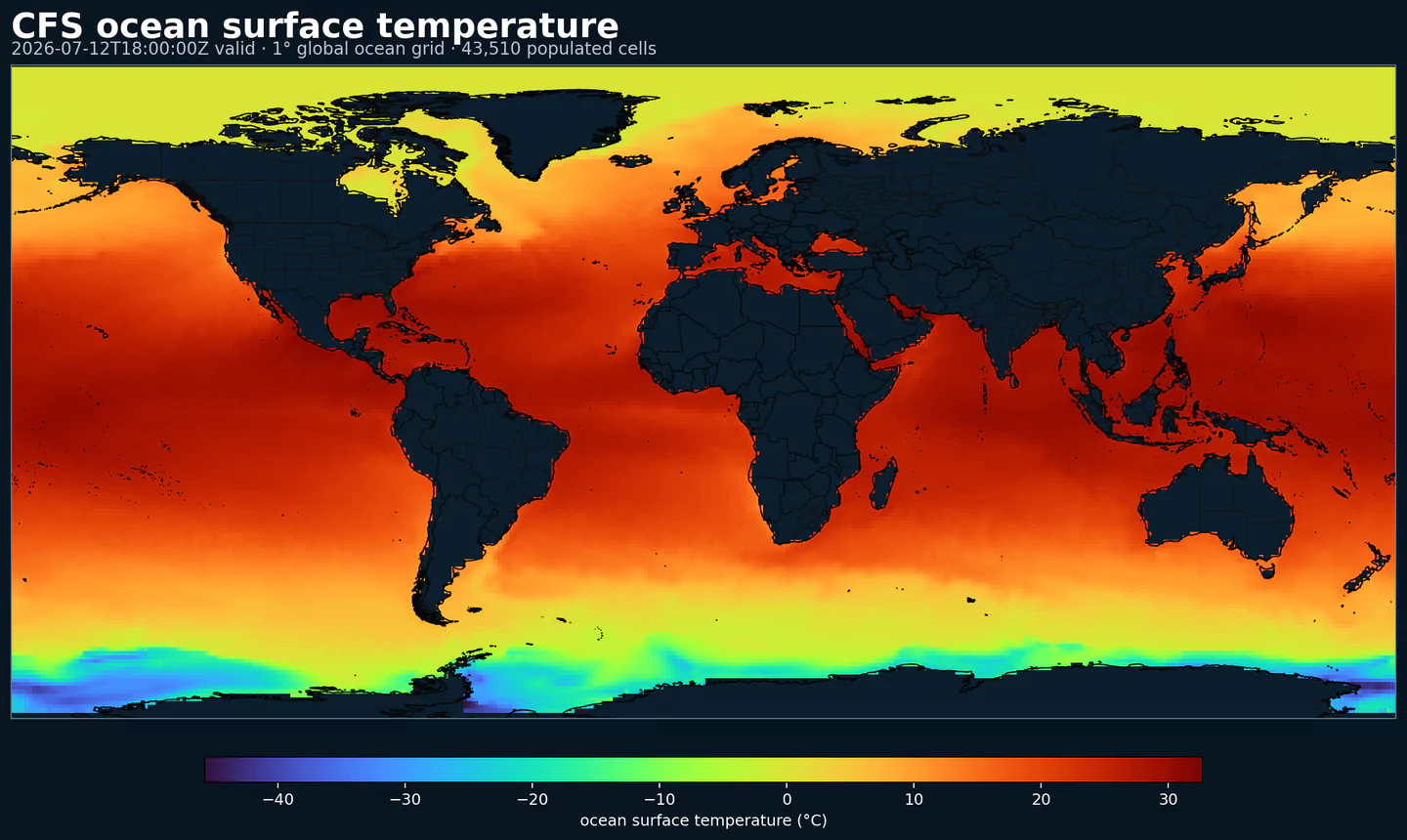

- Includes sea surface temperature, salinity, and ocean current velocity data.
- Supports tropical cyclone forecasting, marine ecosystem studies, and long-term climate variability analysis.
- Useful for El Niño–Southern Oscillation (ENSO) monitoring and prediction.
Resolution: 1.0° global grid.
Temporal Coverage: Updated four times daily, with forecasts extending up to 215 days (5160 hours).
Primary Use Cases: Long-range ocean dynamics, sea surface temperature forecasting, and climate variability studies.

Parameters

Click a parameter to reveal variants in a compact table with ready-to-copy JSON selectors.

DBSS –Depth of Bottom of Surface Stratification (m)

9 variants

Depth of bottom of surface stratification represents the depth of the near-surface stratified layer in the ocean. It is related to mixed-layer structure and air-sea interaction.

Units: m.

Level	Horizon	Introduced	Selector
`0.25C ocean isotherm`	6h-5160h	2022-06-01	`{"name":"DBSS","level":"0.25C ocean isotherm","info":""}`
`0.5C ocean isotherm`	6h-5160h	2022-06-01	`{"name":"DBSS","level":"0.5C ocean isotherm","info":""}`
`1.5C ocean isotherm`	6h-5160h	2022-06-01	`{"name":"DBSS","level":"1.5C ocean isotherm","info":""}`
`1C ocean isotherm`	6h-5160h	2022-06-01	`{"name":"DBSS","level":"1C ocean isotherm","info":""}`
`2.5C ocean isotherm`	6h-5160h	2018-10-31	`{"name":"DBSS","level":"2.5C ocean isotherm","info":""}`
`2.8C ocean isotherm`	6h-5160h	2022-06-01	`{"name":"DBSS","level":"2.8C ocean isotherm","info":""}`
`2C ocean isotherm`	6h-5160h	2022-06-01	`{"name":"DBSS","level":"2C ocean isotherm","info":""}`
`bottom of ocean isothermal layer`	6h-5160h	2018-10-31	`{"name":"DBSS","level":"bottom of ocean isothermal layer","info":""}`
`bottom of ocean mixed layer`	6h-5160h	2018-10-31	`{"name":"DBSS","level":"bottom of ocean mixed layer","info":""}`

DZDT –Vertical Velocity (Geometric) (m/s)

40 variants

Geometric vertical velocity (dz/dt) is the vertical speed of air in height coordinates. Positive values indicate rising motion and negative values sinking motion.

Units: m/s.

Level	Horizon	Introduced	Selector
`105 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"105 m below sea level","info":""}`
`115 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"115 m below sea level","info":""}`
`1193 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"1193 m below sea level","info":""}`
`125 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"125 m below sea level","info":""}`
`135 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"135 m below sea level","info":""}`
`145 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"145 m below sea level","info":""}`
`1479 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"1479 m below sea level","info":""}`
`15 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"15 m below sea level","info":""}`
`155 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"155 m below sea level","info":""}`
`165 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"165 m below sea level","info":""}`
`175 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"175 m below sea level","info":""}`
`1807 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"1807 m below sea level","info":""}`
`185 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"185 m below sea level","info":""}`
`195 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"195 m below sea level","info":""}`
`205 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"205 m below sea level","info":""}`
`215 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"215 m below sea level","info":""}`
`2174 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"2174 m below sea level","info":""}`
`225 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"225 m below sea level","info":""}`
`238 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"238 m below sea level","info":""}`
`25 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"25 m below sea level","info":""}`
`2579 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"2579 m below sea level","info":""}`
`262 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"262 m below sea level","info":""}`
`3016 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"3016 m below sea level","info":""}`
`303 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"303 m below sea level","info":""}`
`3483 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"3483 m below sea level","info":""}`
`35 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"35 m below sea level","info":""}`
`366 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"366 m below sea level","info":""}`
`3972 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"3972 m below sea level","info":""}`
`4478 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"4478 m below sea level","info":""}`
`45 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"45 m below sea level","info":""}`
`459 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"459 m below sea level","info":""}`
`5 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"5 m below sea level","info":""}`
`55 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"55 m below sea level","info":""}`
`584 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"584 m below sea level","info":""}`
`65 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"65 m below sea level","info":""}`
`747 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"747 m below sea level","info":""}`
`75 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"75 m below sea level","info":""}`
`85 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"85 m below sea level","info":""}`
`949 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"949 m below sea level","info":""}`
`95 m below sea level`	6h-5160h	2018-10-31	`{"name":"DZDT","level":"95 m below sea level","info":""}`

EMNP –Evaporation Minus Precipitation (kg/m²/s)

1 variant

Evaporation minus precipitation (E-P) is the net surface water balance. Positive values indicate net drying; negative values indicate net moisture gain.

Units: kg/m²/s.
Accumulations represent water-equivalent depth over the output interval; rates describe intensity.

Level	Info	Horizon	Introduced	Selector
`surface`		6h-5160h	2018-10-31	`{"name":"EMNP","level":"surface","info":""}`

ICEC –Ice Cover (Proportion)

1 variant

Ice cover is the proportion of the grid cell covered by ice. It is used as a surface-state mask for sea ice and related cryosphere diagnostics.

Units: Proportion.

Level	Info	Horizon	Introduced	Selector
`surface`		6h-5160h	2018-10-31	`{"name":"ICEC","level":"surface","info":""}`

ICETK –Ice Thickness (m)

1 variant

Ice thickness is the physical thickness of sea or lake ice. It is important for marine navigation and heat exchange.

Units: m.

Level	Info	Horizon	Introduced	Selector
`surface`		6h-5160h	2018-10-31	`{"name":"ICETK","level":"surface","info":""}`

OHC –Ocean Heat Content (J/m²)

1 variant

Ocean heat content is the integrated thermal energy of the upper ocean. It relates to air-sea coupling and tropical cyclone intensity potential.

Units: J/m².

Level	Info	Horizon	Introduced	Selector
`0-300 m ocean layer`		6h-5160h	2018-10-31	`{"name":"OHC","level":"0-300 m ocean layer","info":""}`

POT –Potential Temperature (K)

40 variants

Potential temperature is the temperature a parcel would have if brought dry‑adiabatically to a reference pressure. It is used for stability.

Units: K.

Level	Horizon	Introduced	Selector
`105 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"105 m below sea level","info":""}`
`115 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"115 m below sea level","info":""}`
`1193 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"1193 m below sea level","info":""}`
`125 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"125 m below sea level","info":""}`
`135 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"135 m below sea level","info":""}`
`145 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"145 m below sea level","info":""}`
`1479 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"1479 m below sea level","info":""}`
`15 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"15 m below sea level","info":""}`
`155 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"155 m below sea level","info":""}`
`165 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"165 m below sea level","info":""}`
`175 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"175 m below sea level","info":""}`
`1807 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"1807 m below sea level","info":""}`
`185 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"185 m below sea level","info":""}`
`195 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"195 m below sea level","info":""}`
`205 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"205 m below sea level","info":""}`
`215 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"215 m below sea level","info":""}`
`2174 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"2174 m below sea level","info":""}`
`225 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"225 m below sea level","info":""}`
`238 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"238 m below sea level","info":""}`
`25 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"25 m below sea level","info":""}`
`2579 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"2579 m below sea level","info":""}`
`262 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"262 m below sea level","info":""}`
`3016 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"3016 m below sea level","info":""}`
`303 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"303 m below sea level","info":""}`
`3483 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"3483 m below sea level","info":""}`
`35 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"35 m below sea level","info":""}`
`366 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"366 m below sea level","info":""}`
`3972 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"3972 m below sea level","info":""}`
`4478 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"4478 m below sea level","info":""}`
`45 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"45 m below sea level","info":""}`
`459 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"459 m below sea level","info":""}`
`5 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"5 m below sea level","info":""}`
`55 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"55 m below sea level","info":""}`
`584 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"584 m below sea level","info":""}`
`65 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"65 m below sea level","info":""}`
`747 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"747 m below sea level","info":""}`
`75 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"75 m below sea level","info":""}`
`85 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"85 m below sea level","info":""}`
`949 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"949 m below sea level","info":""}`
`95 m below sea level`	6h-5160h	2018-10-31	`{"name":"POT","level":"95 m below sea level","info":""}`

SALTY –Salinity (psu (Practical Salinity Units))

40 variants

Salinity measures the concentration of dissolved salts in seawater. It affects seawater density, stratification, and ocean circulation.

Units: psu (Practical Salinity Units).

Level	Horizon	Introduced	Selector
`105 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"105 m below sea level","info":""}`
`115 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"115 m below sea level","info":""}`
`1193 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"1193 m below sea level","info":""}`
`125 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"125 m below sea level","info":""}`
`135 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"135 m below sea level","info":""}`
`145 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"145 m below sea level","info":""}`
`1479 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"1479 m below sea level","info":""}`
`15 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"15 m below sea level","info":""}`
`155 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"155 m below sea level","info":""}`
`165 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"165 m below sea level","info":""}`
`175 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"175 m below sea level","info":""}`
`1807 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"1807 m below sea level","info":""}`
`185 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"185 m below sea level","info":""}`
`195 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"195 m below sea level","info":""}`
`205 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"205 m below sea level","info":""}`
`215 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"215 m below sea level","info":""}`
`2174 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"2174 m below sea level","info":""}`
`225 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"225 m below sea level","info":""}`
`238 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"238 m below sea level","info":""}`
`25 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"25 m below sea level","info":""}`
`2579 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"2579 m below sea level","info":""}`
`262 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"262 m below sea level","info":""}`
`3016 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"3016 m below sea level","info":""}`
`303 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"303 m below sea level","info":""}`
`3483 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"3483 m below sea level","info":""}`
`35 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"35 m below sea level","info":""}`
`366 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"366 m below sea level","info":""}`
`3972 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"3972 m below sea level","info":""}`
`4478 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"4478 m below sea level","info":""}`
`45 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"45 m below sea level","info":""}`
`459 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"459 m below sea level","info":""}`
`5 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"5 m below sea level","info":""}`
`55 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"55 m below sea level","info":""}`
`584 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"584 m below sea level","info":""}`
`65 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"65 m below sea level","info":""}`
`747 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"747 m below sea level","info":""}`
`75 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"75 m below sea level","info":""}`
`85 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"85 m below sea level","info":""}`
`949 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"949 m below sea level","info":""}`
`95 m below sea level`	6h-5160h	2018-10-31	`{"name":"SALTY","level":"95 m below sea level","info":""}`

SNOD –Snow Depth (m)

1 variant

Snow depth is the physical thickness of the snowpack. It is distinct from snow water equivalent, which measures water content.

Units: m.

Level	Info	Horizon	Introduced	Selector
`surface`		6h-5160h	2018-10-31	`{"name":"SNOD","level":"surface","info":""}`

SSHG –Sea Surface Height Anomaly (m)

1 variant

Sea surface height anomaly is deviation from a reference mean sea level. It reflects ocean circulation, steric changes, and eddies.

Units: m.

Level	Info	Horizon	Introduced	Selector
`surface`		6h-5160h	2018-10-31	`{"name":"SSHG","level":"surface","info":""}`

TCHP –Tropical Cyclone Heat Potential (J/m²)

1 variant

Tropical cyclone heat potential measures ocean heat content above a warm threshold layer. Higher values indicate more energy available to intensify storms.

Units: J/m².

Level	Info	Horizon	Introduced	Selector
`layer ocean surface and 26C ocean isothermal level`		6h-5160h	2018-10-31	`{"name":"TCHP","level":"layer ocean surface and 26C ocean isothermal level","info":""}`

THFLX –Ocean Thermal Flux (W/m²)

1 variant

Longwave (thermal) flux represents energy transfer by radiation at the surface. It is a key driver of surface heating and cooling.

Units: W/m².

Level	Info	Horizon	Introduced	Selector
`surface`		6h-5160h	2018-10-31	`{"name":"THFLX","level":"surface","info":""}`

TMP –Temperature (K)

1 variant

Air temperature is the thermal state of the atmosphere at the specified level. It influences density, stability, and energy exchange.

Units: K.

Level	Info	Horizon	Introduced	Selector
`surface`		6h-5160h	2018-10-31	`{"name":"TMP","level":"surface","info":""}`

UFLX –Momentum Flux, U Component (N/m²)

1 variant

Momentum flux, u‑component is the east‑west surface stress exerted by the atmosphere. It drives boundary-layer dynamics.

Units: N/m².

Level	Info	Horizon	Introduced	Selector
`surface`		6h-5160h	2018-10-31	`{"name":"UFLX","level":"surface","info":""}`

UICE –Zonal Ice Velocity (m/s)

1 variant

Zonal ice velocity is the east‑west drift of sea ice. It is used for sea‑ice motion analysis.

Units: m/s.

Level	Info	Horizon	Introduced	Selector
`surface`		6h-5160h	2018-10-31	`{"name":"UICE","level":"surface","info":""}`

UOGRD –Zonal Ocean Current Velocity (m/s)

40 variants

Zonal ocean current velocity is the east‑west component of ocean flow. It affects transport and marine operations.

Units: m/s.

Level	Horizon	Introduced	Selector
`105 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"105 m below sea level","info":""}`
`115 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"115 m below sea level","info":""}`
`1193 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"1193 m below sea level","info":""}`
`125 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"125 m below sea level","info":""}`
`135 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"135 m below sea level","info":""}`
`145 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"145 m below sea level","info":""}`
`1479 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"1479 m below sea level","info":""}`
`15 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"15 m below sea level","info":""}`
`155 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"155 m below sea level","info":""}`
`165 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"165 m below sea level","info":""}`
`175 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"175 m below sea level","info":""}`
`1807 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"1807 m below sea level","info":""}`
`185 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"185 m below sea level","info":""}`
`195 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"195 m below sea level","info":""}`
`205 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"205 m below sea level","info":""}`
`215 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"215 m below sea level","info":""}`
`2174 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"2174 m below sea level","info":""}`
`225 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"225 m below sea level","info":""}`
`238 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"238 m below sea level","info":""}`
`25 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"25 m below sea level","info":""}`
`2579 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"2579 m below sea level","info":""}`
`262 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"262 m below sea level","info":""}`
`3016 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"3016 m below sea level","info":""}`
`303 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"303 m below sea level","info":""}`
`3483 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"3483 m below sea level","info":""}`
`35 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"35 m below sea level","info":""}`
`366 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"366 m below sea level","info":""}`
`3972 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"3972 m below sea level","info":""}`
`4478 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"4478 m below sea level","info":""}`
`45 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"45 m below sea level","info":""}`
`459 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"459 m below sea level","info":""}`
`5 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"5 m below sea level","info":""}`
`55 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"55 m below sea level","info":""}`
`584 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"584 m below sea level","info":""}`
`65 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"65 m below sea level","info":""}`
`747 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"747 m below sea level","info":""}`
`75 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"75 m below sea level","info":""}`
`85 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"85 m below sea level","info":""}`
`949 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"949 m below sea level","info":""}`
`95 m below sea level`	6h-5160h	2018-10-31	`{"name":"UOGRD","level":"95 m below sea level","info":""}`

VFLX –Momentum Flux, V Component (N/m²)

1 variant

Momentum flux, v‑component is the north‑south surface stress exerted by the atmosphere. It drives boundary-layer dynamics.

Units: N/m².

Level	Info	Horizon	Introduced	Selector
`surface`		6h-5160h	2018-10-31	`{"name":"VFLX","level":"surface","info":""}`

VICE –Meridional Ice Velocity (m/s)

1 variant

Meridional ice velocity is the north‑south drift of sea ice. It is used for ice motion and marine routing.

Units: m/s.

Level	Info	Horizon	Introduced	Selector
`surface`		6h-5160h	2018-10-31	`{"name":"VICE","level":"surface","info":""}`

VOGRD –Meridional Ocean Current Velocity (m/s)

40 variants

Meridional ocean current velocity is the north‑south component of ocean flow. It affects transport and marine conditions.

Units: m/s.

Level	Horizon	Introduced	Selector
`105 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"105 m below sea level","info":""}`
`115 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"115 m below sea level","info":""}`
`1193 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"1193 m below sea level","info":""}`
`125 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"125 m below sea level","info":""}`
`135 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"135 m below sea level","info":""}`
`145 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"145 m below sea level","info":""}`
`1479 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"1479 m below sea level","info":""}`
`15 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"15 m below sea level","info":""}`
`155 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"155 m below sea level","info":""}`
`165 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"165 m below sea level","info":""}`
`175 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"175 m below sea level","info":""}`
`1807 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"1807 m below sea level","info":""}`
`185 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"185 m below sea level","info":""}`
`195 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"195 m below sea level","info":""}`
`205 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"205 m below sea level","info":""}`
`215 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"215 m below sea level","info":""}`
`2174 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"2174 m below sea level","info":""}`
`225 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"225 m below sea level","info":""}`
`238 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"238 m below sea level","info":""}`
`25 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"25 m below sea level","info":""}`
`2579 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"2579 m below sea level","info":""}`
`262 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"262 m below sea level","info":""}`
`3016 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"3016 m below sea level","info":""}`
`303 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"303 m below sea level","info":""}`
`3483 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"3483 m below sea level","info":""}`
`35 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"35 m below sea level","info":""}`
`366 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"366 m below sea level","info":""}`
`3972 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"3972 m below sea level","info":""}`
`4478 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"4478 m below sea level","info":""}`
`45 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"45 m below sea level","info":""}`
`459 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"459 m below sea level","info":""}`
`5 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"5 m below sea level","info":""}`
`55 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"55 m below sea level","info":""}`
`584 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"584 m below sea level","info":""}`
`65 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"65 m below sea level","info":""}`
`747 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"747 m below sea level","info":""}`
`75 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"75 m below sea level","info":""}`
`85 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"85 m below sea level","info":""}`
`949 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"949 m below sea level","info":""}`
`95 m below sea level`	6h-5160h	2018-10-31	`{"name":"VOGRD","level":"95 m below sea level","info":""}`

No parameters match your search.
